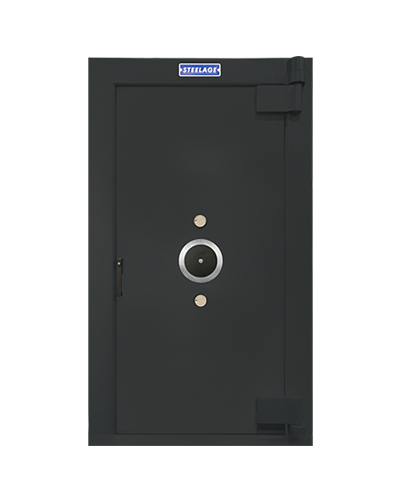

Vault Door
High security Vault door certified by the Bureau of Indian standards
Vault Door
Vault Door
High security Vault door certified by the Bureau of Indian standards for resistance against burglary.
Vault door for protection of currency chest and valuables are certified as per BIS from Class A upto AAA. Ideal for high-risk business environment which requires storage of cash and valuables, such as banks, jewellers, CIT companies, bullion houses etc.
This premium range, best in class offering comes with industry acclaimed strength and quality standards and also certified as per IS 11188 from the Bureaus of Indian standards
*The images shown are for illustration purposes only. T&C Apply
Key Features
TYPE OF RESISTANCE
Burglary
RANGE
3 models ranging from Class A to AAA
LOCK OPTION
Key Lock, Combination Lock or Biometric Access Control System
Product Description
Vault doors for protecting currency chest and valuables are certified as per BIS standard Class A to AAA. Ideal for the high-risk business environment, which requires the storage of cash and valuables, such as banks, jewellers, CIT companies, bullion houses etc.
This best in class offering comes with acclaimed industry strength and quality standards certified as per IS 11188 from the Bureau of Indian standard (BIS). The Door comes with an option of Factory fitted biometric access control system.
DO'S
DON'TS
Benefits
- Torch and tool resistant with fire resistance
- High-security locking options is available
- Best in class design and build quality
- Choice of 3 models from class A to AAA
- Option of Factory fitted biometric access control system
- Customizable with Left Hung (LH) door option
Resistance
The Vault door has been certified by Bureau of Indian standard in accordance with the IS-11188 standard for burglary resistance.
Constructions
This Vault door comes with monolithic door construction for superior strength and protection.
Key Specifications
Certification Standard
IS-11188
Protection or Resistance Level
Class A to AAA
Type of Resistance
Burglary
Lock Types
Key Lock, Combination Lock or Biometric Access Control System
Valuables to Protect
Cash, Jewellery, Other valuables
Products Specifications
| Classification | External Dimension HxW mm |
Clear Opening HxW mm |
Approx. Net Weight (KG) |
|---|---|---|---|
| Class A VD | 2250(H) x 1300(W) | 1981(H) x 902(W) | 1300 |
| Class AA VD | 2250(H) x 1300(W) | 1981(H) x 902(W) | 1330 |
| Class AAA VD | 2330(H) x 1407(W) | 2081(H) x 916(W) | 2200 |
Standard door is right hung. Gunnebo policy is one of constant improvement. We reserve the right to alter specifications without prior notice.
*Tolerance on weight +/- 10% & Tolerance on dimensions is +/- 5 mm *Conditions Apply
FAQs
The Steelage Vault Door is a premium high-security door designed for building strong rooms and vaults. It is certified as per IS 11188 and available in Class A, AA, and AAA and is used by banks, CIT companies, bullion houses, and other high-risk institutions to protect large quantities of cash and valuables.
These are BIS security classifications under IS 11188:
- Class A — High security
- Class AA — Very high security
- Class AAA — Highest level of security in this range
Resistance value for Torch and Tool(TRTL) will vary as per Classes - A, AA, AAA
Class AAA is recommended for institutions that store very high-value assets, such as large banks, currency chests, bullion dealers, and CIT (Cash-in-Transit) companies. It provides the maximum level of tool and torch resistance available in this range.
Key features include:
- TRTL (Torch and Tool Resistance)
- Fire Resistance
- Monoshield Design
- Ultra Core Technology
- High-security BIS-certified locking system
- Option for factory-fitted biometric lock
- Strong resistance against forced entry
The weight varies by class:
-
Class A & AA → Approximately 1300–1330 kg
-
Class AAA → Approximately 2200 kg
These are extremely heavy doors and require proper structural support during installation.
- Class A & AA: Clear opening approx. 6.4 ft (Height) × 2.9 ft (Width)
- Class AAA: Clear opening approx. 6.8 ft (Height) × 3.0 ft (Width)
This allows easy movement of trolleys, cash boxes, and personnel.
You can choose from:
- Key Lock
- Combination Lock
- Electronic Lock (can be factory-fitted)
Yes. It offers fire resistance along with strong burglary protection, making it suitable for environments where both fire and theft risks exist.
Yes. The door can be customized as Left Hung (LH) if required (standard is right hung). Biometric systems can also be factory-fitted as per your security requirements.
Gunnebo India provides support through authorised channel partners across India. For specifications, pricing, structural requirements, and installation, contact them on toll-free numbers 1800 22 3525 or 1800 209 3040. It is recommended to discuss exact requirements with an authorised dealer.
